UD IMP RDA Atomizer

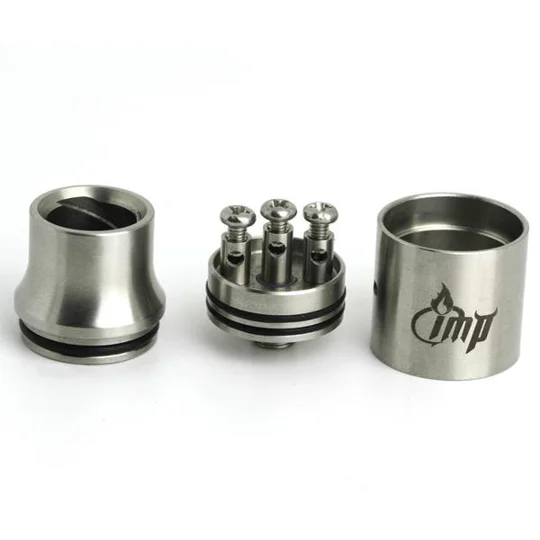

UD IMP RDA Rebuildable Dripping Atomizer, has three posts with 2.5mm post holes. It also comes with
wide bore drip tip with spral groove for large vapor, ceramic base and airflow adjustable through base.
A low height andpreciseRDA.

Spec:

Diameter: 22 mm
Height with top cap: 29mm
Height with wire drip tip: 40mm
Oil Capacity： Dripping
Connection： 510 thread

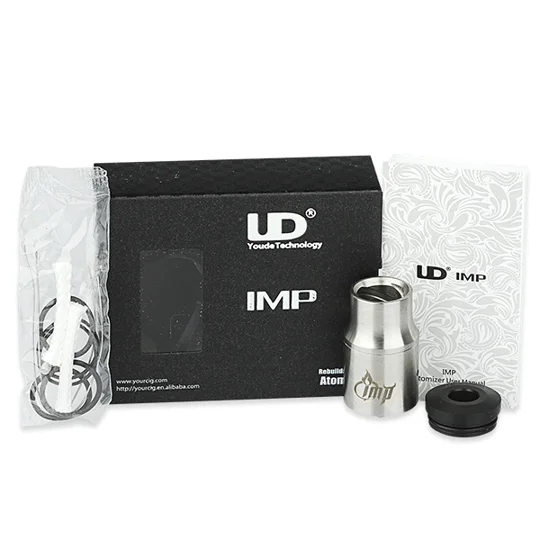

UD IMP RDA atomizer comes with:

• 1 x UD IMP RDA tank
• 1 x spare top cap
• Accessory bag: o-rings, screw, wick and wire

Features

1. two negative posts and one positive post with 2.5mm post hole

2. wide bore drip tip with spiral groove

3. ceramic base

4. airflow adjustable through base

Guide:

1. Prepare scissors, screwdriver, tweezers before beginning.

2. Unpack the accessory bag and wrap the wire to the wick.

3. Disassemble the base pedestal from the tank.

4.  Take one wire made in step 2, one end connected to hole a (from left to right, a, b, c post), and tighten
     up the screw, the other end to post b; take the second wire made in step 2, opposite, one end connected
     to the hold c and tighten up the screw, the other end to hole b, then tighten up the screw in hole b;
     Connect the MOD for short circuit test.

5. Cut extra wires, well wrap the wick, inject oil, assemble the top cap or drip tip, and properly adjust the
    air flow by turning the connecting tube.

6. To use a small drip tip, place the wide drip tip with the top cap.

7. Connect the atomizer to the MOD and enjoy.

Note: do not inject too much or too little liquid.

Info:

• It doesn't come with e-liquids.
